Gas Spring Bansbach diproduksi dari bahan berkualitas tinggi dan ramah lingkungan. Kualitas yang konsisten dijamin karena pemantauan bahan baku, program pengujian, dan program kontrol kualitas yang dilakukan di seluruh proses produksi. Produk yang dipesan secara konsisten diproduksi secara akurat dengan menggunakan proses manufaktur berteknologi canggih kami.
Damper
Connecting Part
Tersedia dalam berbagai variasi.
Cylinder
Silinder dari baja dan dilapis.
Piston
Piston untuk kontrol kecepatan.
Guiding Piece
Bagian pemandu berkualitas tinggi dan unik dengan ruang gemuk (grease) yang terintegrasi.
Cerampro
Batang piston dari cerampro yang tahan karat dan korosi.Sertifikat Bansbach Easylift
Keunggulan gas spring Bansbach
- Ketahanan korosi tertinggi dicapai melalui silinder berlapis bubuk dan permukaan batang piston yang dirawat dengan CeramPro®.
- Gesekan minimal untuk menghasilkan gaya ekstensi terendah.
- Siklus hidup terbaik.
- Perlindungan terhadap getaran dan gaya samping ringan.
- Ruang gemuk (grease) terintegrasi.
- Kekuatan break away rendah.
- Pemasangan dan penyimpanan di posisi apa pun.
Batang Piston Cerampro
Permukaan CeramPro® adalah pengembangan inovatif dari laboratorium Bansbach. CeramPro® menawarkan ketahanan karat dan korosi maksimum pada batang piston. Perlakuan khusus ini memberikan permukaan yang sangat halus dengan karakteristik pengoperasian yang sangat baik. Batang piston terbaik tidak membuat gas spring premium. Hanya kombinasi komposisi permukaan batang piston dan paket pemandu dan segel sebagai mitra setara yang menunjukkan kualitas yang sebenarnya.
OUR DUMPER PRODUCTS

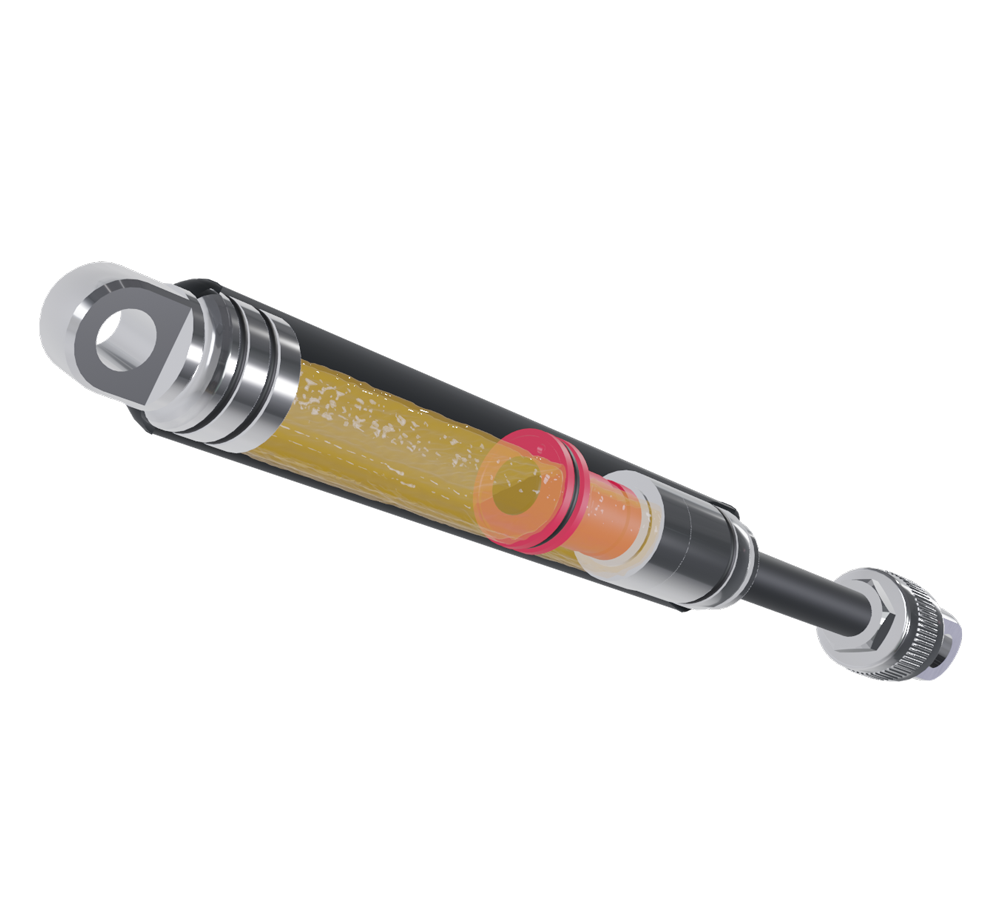

MC damper adjustable
f different damping intensities are required or cannot be clearly defined in advance, our adjustable MC dampers are a good option. The key advantage is that the damping force can be regulated when mounted.
50 – 1 300 N
Power
10 – 500 MM
Hub
10/22 – 10/28
diameter

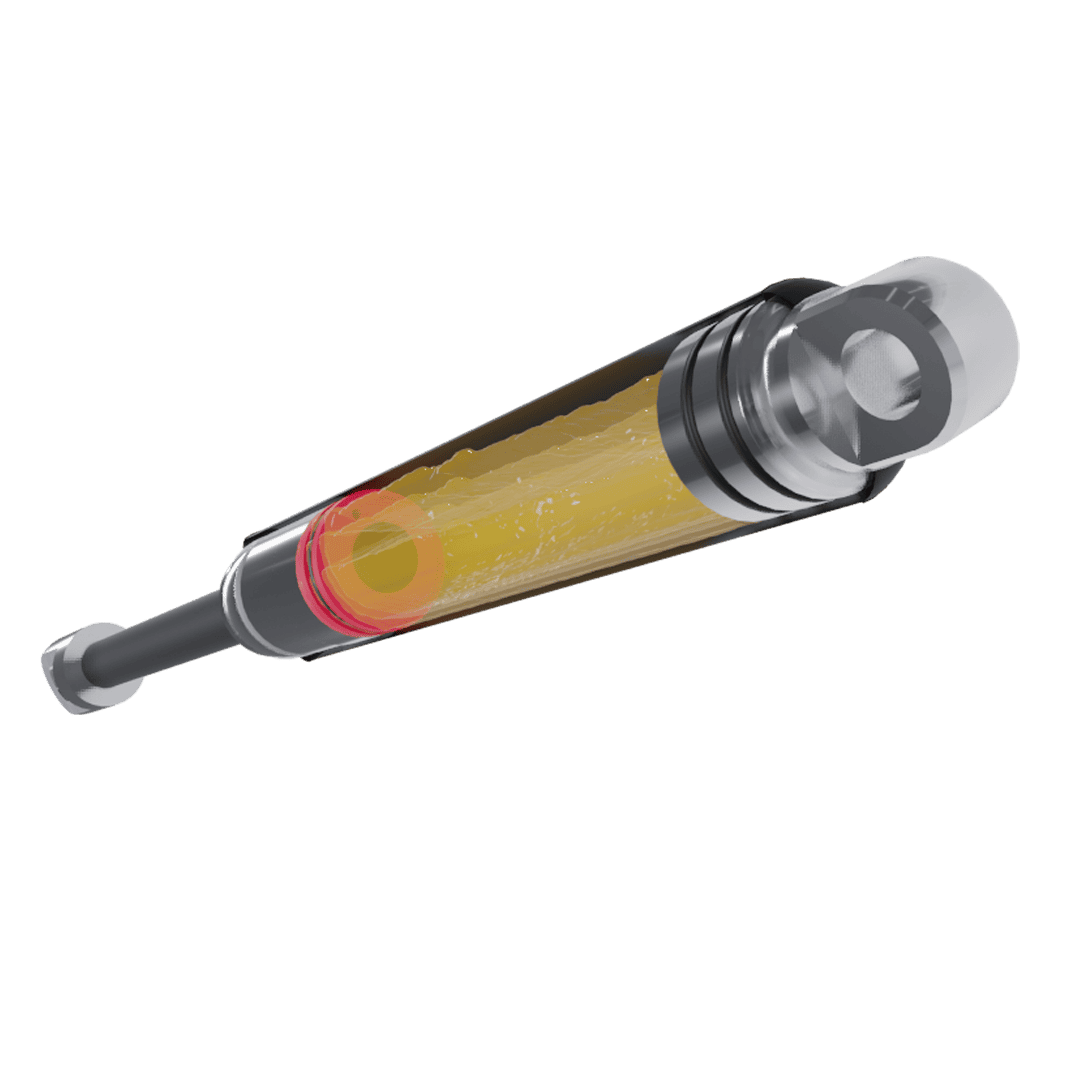

MC-damper standard
This design with damping over the entire stroke is filled exclusively with oil, so there is no gas pressure. Due to the design, there is a small idle stroke when the piston rod is extended. The retraction and extension speed – i.e. the effective acceleration inhibition of a mass movement – can be significantly influenced by using different nozzles and different oil viscosities.
7 – 40 000 N
Power
10 – 1 000 MM
Hub
3/10 – 30/70
diameter

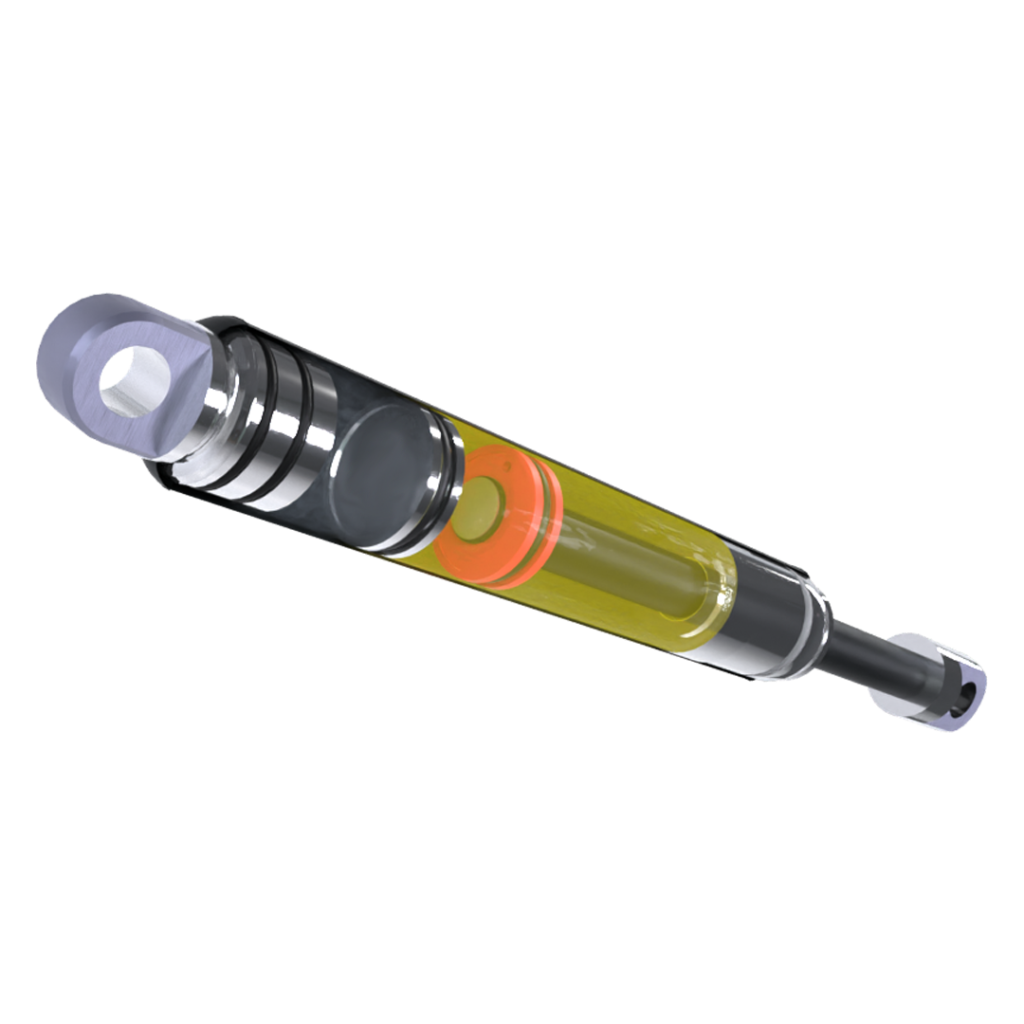

MC damper with separating piston
This Bansbach damper variant enables controlled damping of movement in both directions without spring effects. The piston runs completely in a fixed oil chamber. The piston rod volume does not affect the oil chamber when the piston rod is retracted or extended.
50 – 2 600 N
Power
20 – 250 MM
Hub
10/22 – 14/40
diameter

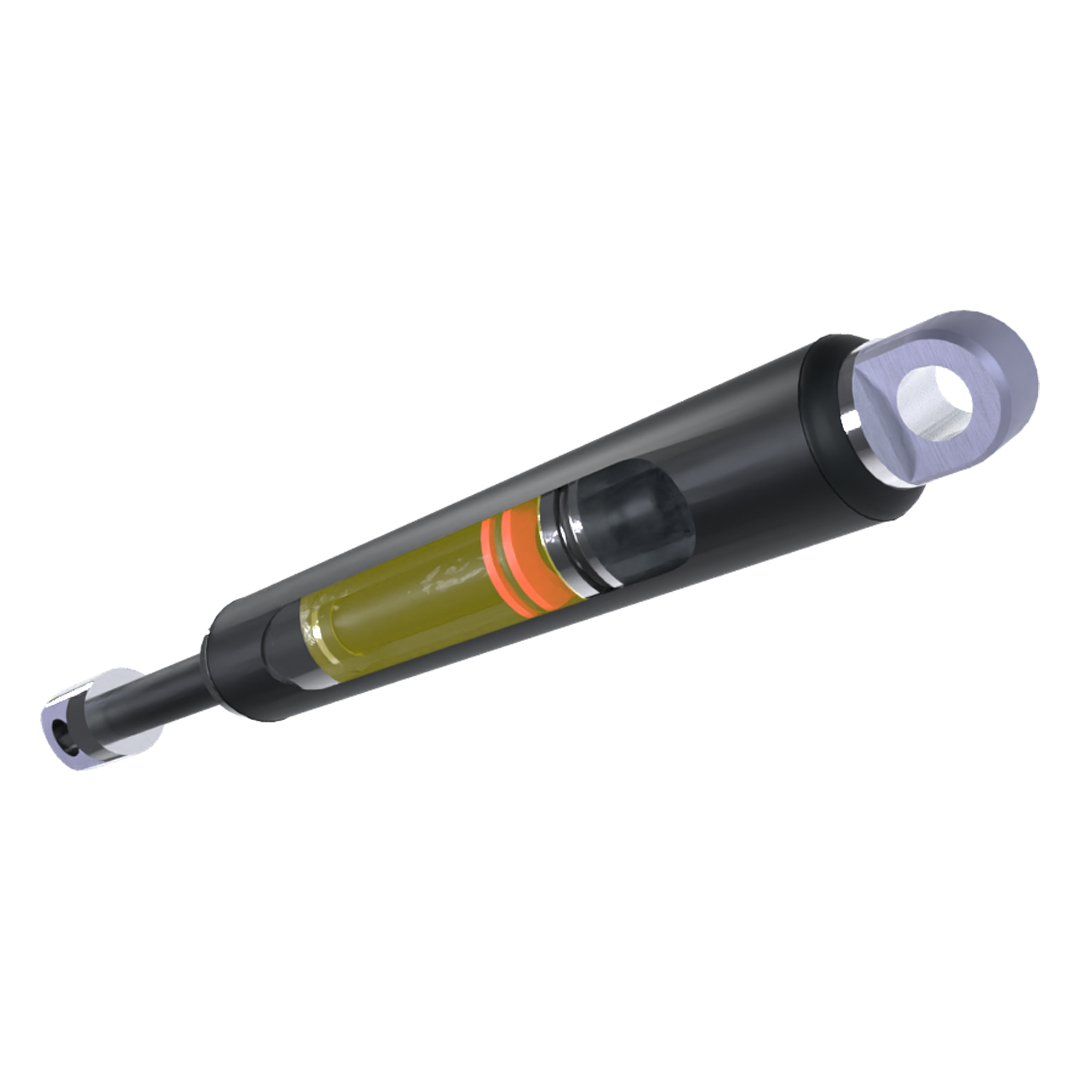

MC damper without idle stroke
This Bansbach damper variant enables controlled damping of movement in both directions without spring effects. The piston runs completely in a fixed oil chamber. The piston rod volume does not affect the oil chamber when the piston rod is retracted or extended.
50 – 2 600 N
Power
20 – 250 MM
Hub
10/22 – 14/40
diameter

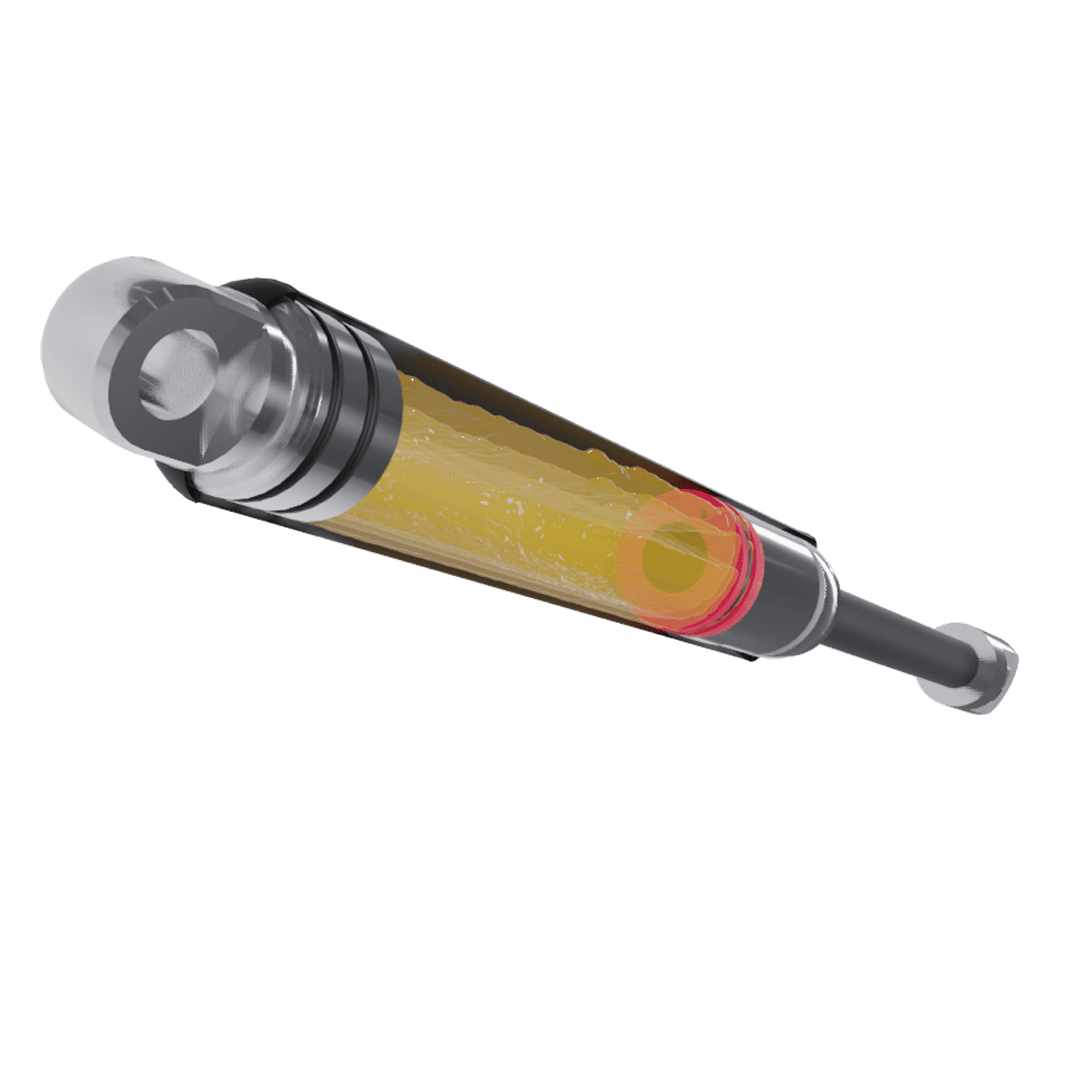

HB damper
With these hydraulic brake cylinders, the retraction and extension speeds can be set very precisely. The speed is controlled as it retracts and extends. The damping intensity of these dampers can be adjusted by turning the piston rod. When adjusting, care must be taken not to damage the adjustment segment by turning it too hard. If there is significant resistance, the adjustment process must be stopped.
800 – 10 000 N
Power
25 – 800 MM
Hub
6/15 – 14/40
diameter
